Single Suction Heavy Duty Antiwear Cement Mill Industrial Centrifugal Blower Fan

Name: Single Suction Heavy Duty Antiwear Cement Mill Industrial Centrifugal Blower Fan
Brand: Xinxiang SIMO Blower Co., Ltd.
SKU: SIMO-Ventilator 9-03
Availability: InStock

Productdetails:

Plaats van herkomst:	CHINA
Merknaam:	SIMO BLOWER
Certificering:	CE/ISO9001/ISO45001
Modelnummer:	SIMO-Ventilator 9-03

Detailinformatie

Plaats van herkomst:

CHINA

Merknaam:

SIMO BLOWER

Certificering:

CE/ISO9001/ISO45001

Modelnummer:

SIMO-Ventilator 9-03

Toepasselijke industrieën:

Vervaardigingsbedrijf, bouwwerkzaamheden, Energie en mijnbouw, industriële productiesysteem

After-sales service verstrekt:

Veldinstallatie, inbedrijfstelling en training

Plaats van herkomst:

Henan, China

Spanning:

380V/415V/440V/660V/6KV/10KV

Aangepaste ondersteuning:

OEM, ODM, OBM

Mesmateriaal:

Koolstofstaal, roestvrij staal

Montage:

Vrijstaand

Motor:

slijtagebestendige rolbladen

Waaier:

Achteruitstuwblaad

Garantie:

1 jaar

Markeren:

High Light

Markeren:

heavy duty cement mill blower

industrial centrifugal fan for cement

antiwear single suction blower

Trading Information

Min. bestelaantal:

≥1 set

Prijs:

$500-1,0000.00/set

Verpakking Details:

1. Standaard exporteren houten behuizing 2. Staal pallet waterdichte stoffen pakket 3. ander pakket

Levertijd:

35 dagen om te onderhandelen

Betalingscondities:

L/C, T/T, D/P

Levering vermogen:

300sets 30 dagen

Productomschrijving

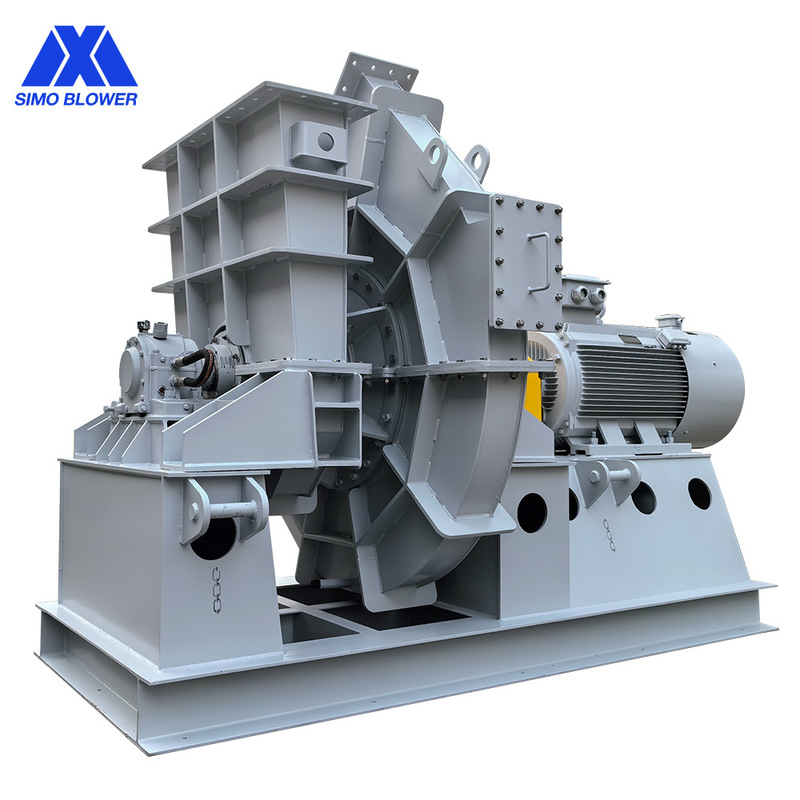

Single Suction Heavy Duty Antiwear Cement Mill Industrial Centrifugal Blower Fan

This single-suction centrifugal blower is engineered for the severe-duty environment of cement milling operations. It features a heavy-duty construction with integrated anti-wear technologies, such as hardened impeller blades and protective linings, to withstand the highly abrasive nature of cement dust and raw meal. Designed for continuous, reliable operation, it provides the high-pressure airflow essential for material transport, ventilation, and process efficiency in cement production. Its robust design minimizes maintenance downtime and extends service life, making it a durable and cost-effective solution for the toughest industrial applications.

Product Features

It can output high pressure and is suitable for any industrial occasion where high pressure & normal temperature gas is required.
The energy transfer efficiency is high, the energy of the motor is directly applied to the impeller, and there is no energy consumption during the transfer.
The motor uses high-efficiency and energy-saving motors from China's leading motor manufacturers (and can also install branded motors required by users), with reliable quality and lower energy consumption.
It is made of high quality carbon steel, stainless steel or other metal materials are available upon request.
The impeller is subjected to a high standard of dynamic balance correction to ensure stable operation of the fan.
After the completion of production, after running test and vibration value detection, the operation is reliable.

Product Parameters

The following datas are only part of performance of our product.

If you can't find the datas you need, pls send us your performance requirements we will provide you customized design service.

Series no.	9-03 series	Feature selection
Performance	Impeller diameter	400-1800mm
Performance	Rotation speed	≤4000rpm
Pressure range		1581-10587Pa
Flow range		90.6-61297m³/h
Structure	Blade type	Forward
	Impeller support	SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type
	Lubrication method	Oil bath lubrication, grease lubrication, lubrication oil station (Can be specified)
	Cooling method	Air cooling, Water cooling, Oil cooling (Can be specified)
Gas composition	Gas temperature	Normal \| Customer request \| Customer request \| ≥250ºC \| Customer request
Gas composition	gas characteristic	Clean gas \| Corrosive gas \| Particulate dust \| High temperature gas \| Flammable gas, explosive gas
System configuration	Motor brand	Chinese famous brand, ABB, Siemens, WEG etc (Can be specified)
	Impeller	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| Wear-resistant layer or wear-resistant liner, ceramic patch \| High temperature high quality alloy steel \| FRP, Aluminum alloy (Can be specified)
	Air inlet cone	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Casing	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Air damper	High quality carbon steel \| FRP, Stainless steel, Rubber Lining \| High quality carbon steel \| High quality carbon steel \| High quality carbon steel (Can be specified)
	Main shaft	High strength carbon steel, Alloy structural steel (Can be specified)
	Bearing	ZWZ, SKF, FAG, NSK (Can be specified)
	Bearing housing	Cast iron
Option parts		System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument.

Detailed Photos

Installation Instructions

More than 300 sets of various processing and testing equipment, with an annual production capacity of 10,000 sets. Meet emergency delivery needs and guarantee your engineering time. Accurately control every link, ensure the production quality of equipment, and ensure zero error.
