| Plaats van herkomst: | China |
| Merknaam: | SIMO BLOWER |
| Certificering: | CE/ISO9001/ISO45001 |
| Modelnummer: | cantrifugal ventilator |

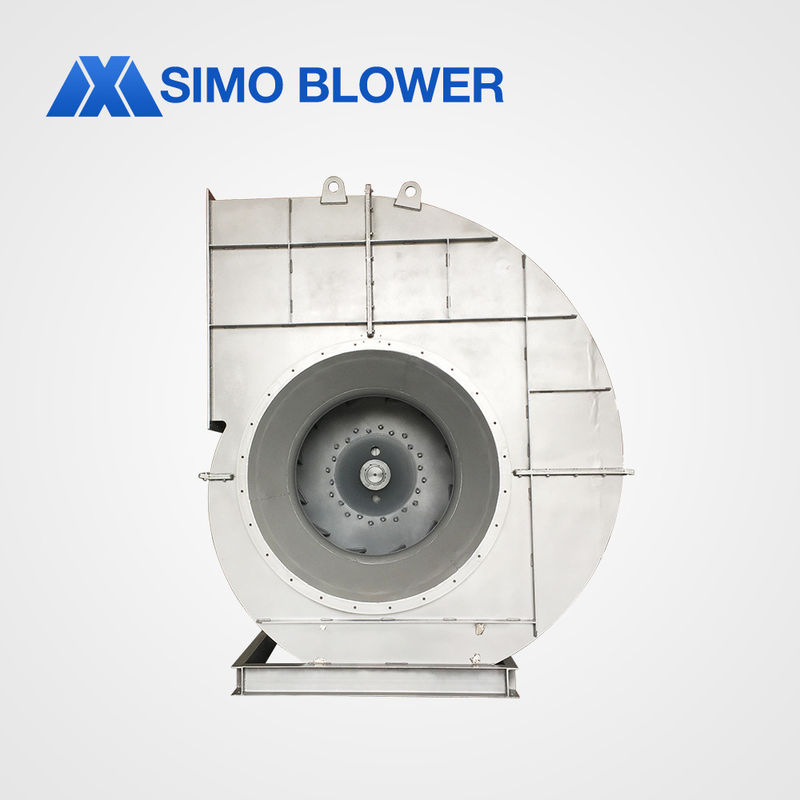

The 45-Ton Boiler of The Textile Power Plant Is Equipped with a Primary Fan
Detail introduction:
G4-10 and Y4-10 series ventilation and induced draft fans are suitable for the ventilation and induced draft fan systems of 2~670T/h steam boilers in thermal power plants.
It can also be used for mine ventilation and general ventilation without other special requirements; Mainly used to meet the needs of large air flow applications, low noise and high efficiency.
They can transport clean gas, dusty gas, flammable gas, corrosive gas, powder or granular materials at normal temperature or high temperature.
Typical applications include: building ventilation, mine ventilation, smoke evacuation, drying, clinker cooling, transport of gas, transport of lightweight materials, blasting and drafting of industrial boiler systems, and supply of air to kiln systems/incinerator systems and induced air, air purification equipment, industrial dust collector systems, etc.
Technical specifications:
The following datas are only part of performance of our product.
If you can't find the datas you need, pls send us your performance requirements
we will provide you customized design service.
| Series no. | 4-10 series | Feature selection | |||||
| Normal | anti-corrosion | wear-resisting | High temperature | anti-explosion | Remarks | ||
| Performance | Impeller diameter | 800-2950mm | |||||
| Rotation speed | 580-1450r/min | ||||||
| Pressure range | 553-7218Pa | ||||||
| Flow range | 15229-810000m³/h | ||||||
| Structure | Blade type | Backward, Straight, Aerofoil type | |||||
| Impeller support | SWSI(Single Width, Single Inlet), DWDI(Double Width, Double Inlet), Overhung type | ||||||
| Lubrication method | Oil bath lubrication, grease lubrication, lubrication oil station | Can be specified | |||||
| Cooling method | Air cooling, Water cooling, Oil cooling | Can be specified | |||||
| Driven mode | Direct driven, Coupling driven, Belt driven | Can be specified | |||||
| Gas composition | Gas temperature | Normal | Customer request | Customer request | ≥250 | Customer request | |
| gas characteristic | Clean gas | Corrosive gas | Particulate dust | High temperature gas | Flammable gas, explosive gas | ||
| System configuration | Motor brand | Chinese famous brand, ABB, Siemens, WEG etc | Can be specified | ||||
| Impeller | High quality carbon steel | FRP, Stainless steel, Rubber Lining | Wear-resistant layer or wear-resistant liner, ceramic patch | High temperature high quality alloy steel | FRP, Aluminum alloy | Can be specified | |
| Air inlet cone | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |
| Casing | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |
| Air damper | High quality carbon steel | FRP, Stainless steel, Rubber Lining | High quality carbon steel | High quality carbon steel | High quality carbon steel | Can be specified | |
| Main shaft | High strength carbon steel, Alloy structural steel | Can be specified | |||||
| Bearing | ZWZ, SKF, FAG, NSK | Can be specified | |||||
| Bearing housing | Cast iron | ||||||
| Foundation bolts | GB799-1988 | ||||||
| Option parts | System base frame, Protective screening, Silencer, Inlet & Outlet flexible connections, Inlet & Outlet counter flange, Air damper, Electric actuator, Shock absorber, Diaphragm coupling, Fluid coupling, Motor rain cover, Temperature sensor, Vibration sensor, Soft starter, Inverter, Special Electrical Motor, System monitoring Instrument. | ||||||
We are strict with every step about the industrial centrifugal fan and axial fan.
Pursue excellent quality, make perfect product!
Delivery detail: 35 days after receive your payment
1. How many years your company has experience in centrifugal fan machines?
Answers: Xinxiang SIMO BLOWER Co.,Ltd was founded in 1955. We have more than 70 years experience on centrifugal fan. We are manufacturer. Our product has been delivered to more than 40 countries and cities.
2. How about your company's pre-sales service and after-sales service?
Answers: before our cooperation, we have the professional technical team to help you make the technical solution according to your working condition. To make sure the centrifugal fan efficiency operation. And also welcome to visit SIMO BLOWER to see the products production process and quality monitoring system. After sales service, we will offer 12 months' repairing service, and provide lifelong follow-up services. Besides, our engineers are available for going abroad to offer the repairing service.
3. Does your company have qualifications?
Answers: all of our product are produced by our company will pass ISO 9001-2008 and CE.
